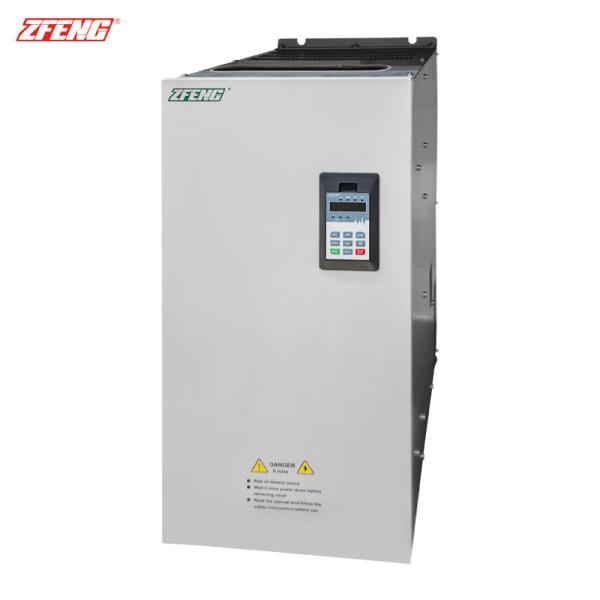

The frequency converter is mainly composed of rectifier, filter, inverter, braking unit, driving unit, detection unit, and microprocessor unit. The core working principle is to adjust the voltage and frequency of the output power supply by disconnecting the internal IGBT (Insulated Gate Bipolar Transistor). Specifically, the frequency converter first converts the input AC power into DC power, and then converts the DC power into AC power with controllable frequency and voltage for use by the electric motor.

Core Functions

• Speed regulation function: The frequency converter can adjust the voltage and frequency of the output power supply according to the actual needs of the motor, achieve stepless speed regulation, and meet the precise requirements of various production processes for motor speed.
• Energy saving function: By precisely controlling the speed of the motor, the frequency converter can avoid wasting electrical energy when the motor does not need to run at full speed, thereby achieving significant energy-saving effects. For example, in square torque load scenarios such as fans and pumps, the energy-saving effect of frequency converters can reach 30% to 60%.
• Protection function: The frequency converter has multiple protection functions such as overcurrent, overvoltage, overload, etc., which can ensure the safe and stable operation of the equipment in abnormal situations, effectively protecting the motor and frequency converter from damage.

Purchase Suggestions

When choosing a frequency converter, enterprises should comprehensively consider factors such as the characteristics of production machinery, the required speed range, the accuracy of static speed, and the requirements for starting torque. At the same time, it is also necessary to pay attention to the power matching, environmental adaptability, and compatibility with other devices of the frequency converter.If you have any technical questions or procurement doubts, please feel free to contact us at any time.
